CQA6X-G4
  • Specification
  • Drawing
  • Download
  • Feedback

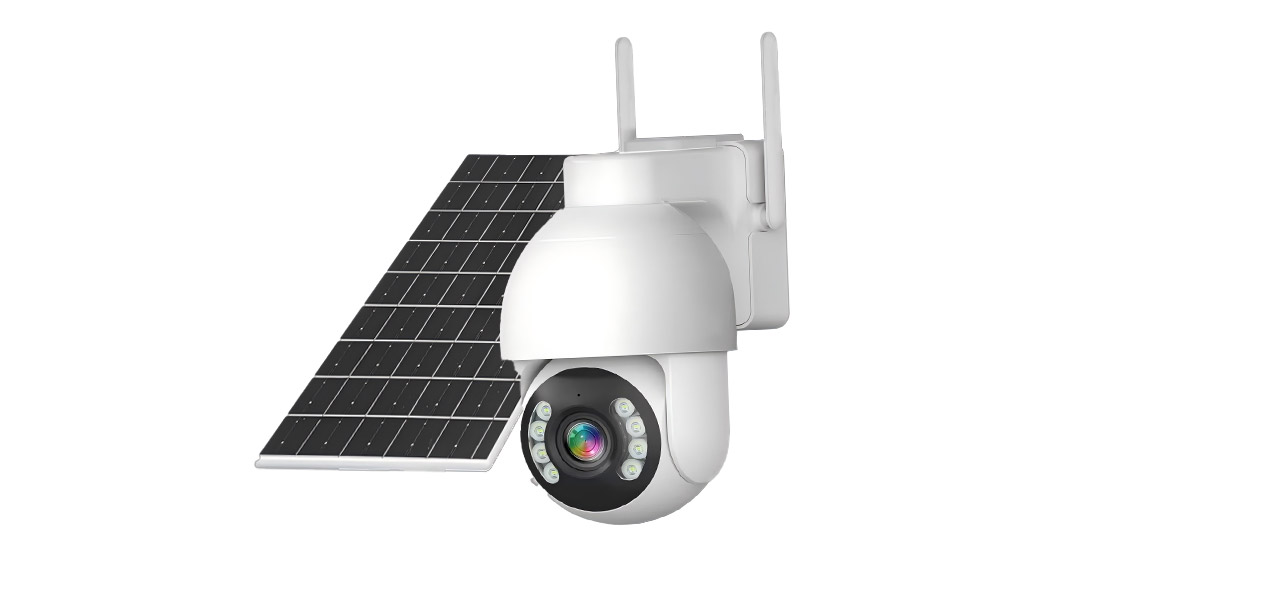

Model NO.CQA6X-G4
Camera
Sensor Type1/3" CMOS
ShutterAdaptive Shutter
Lens6~36mm@F1.8~F2.5
Field of view(Wide)Diagonal Field of View: 53.9°, Horizontal: 44.3°, Vertical: 33.9°
Field of view(Tele)Diagonal Field of View: 9°, Horizontal: 7.8°, Vertical: 5.8°
Pan/Tilt Rotation AnglesHorizontal 0°-270°, Vertical 0°-90°
Zoom6X Optical zoom
Day/Night ModeICR Infrared Filter
Digital Noise Reduction3D Digital Noise Reduction
Wide Dynamic Range/
Interfaces/Buttons
Storage InterfaceMicro SD Card (up to 512GB)
Power InterfaceType-C Interface
Reset Button1
Power Switch1
Compression Standards
Video Compression StandardsH.265
Video BitrateAdaptive Bitrate
Audio BitrateAdaptive Bitrate
Video
Maximum Video SizeMaximum 2560x1440, supports dual stream
Frame RateMaximum 15fps
Image FlipSupport
Backlight CompensationSupport
Software Features
Working ModeSmart Mode/Constant Power Mode/AOV Mode/Power-Saving Mode/Sleep Mode
Smart AlarmPerson/Vehicle Detection
Two-Way AudioSupport
Gun-ball Linkage/
Pan/Tilt PresetsSupport, up to 6 presets
4G Parameters
Network StandardsLTE-TDD:B34/B38/B39/B40/B41
LTE-FDD:B1/B3/B5/B8
LTE CategoryCat1
Built-in SIM CardNone
External Removable SIM CardSupport
Solar Panel
Output Power8W*2
Standard Output Voltage5V
Lithium Battery
Battery Capacity16000mAh
General Specifications
Operating Temperature and Humidity-10℃~50℃, Humidity less than 95% (non-condensing)
Protection LevelIP66
Power SupplyType-C Charging Port DC 5V/2A (user needs to provide)
Infrared Illumination Distance60m
Dimensions (mm)111*166*206mm
Weight980g (bare unit)
