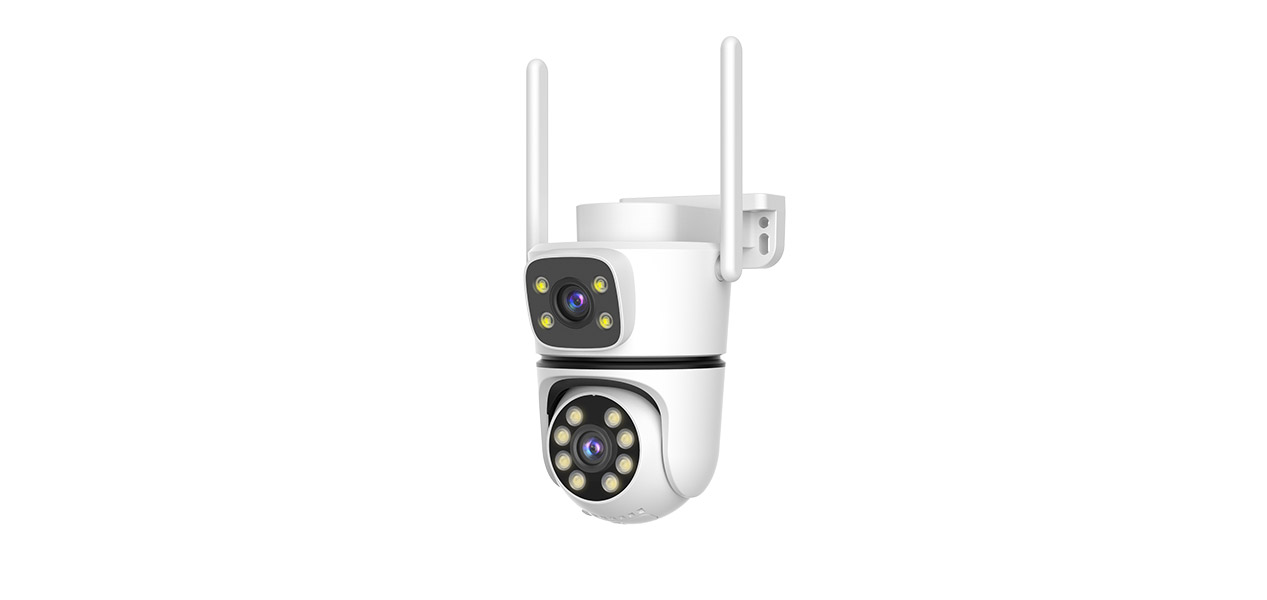

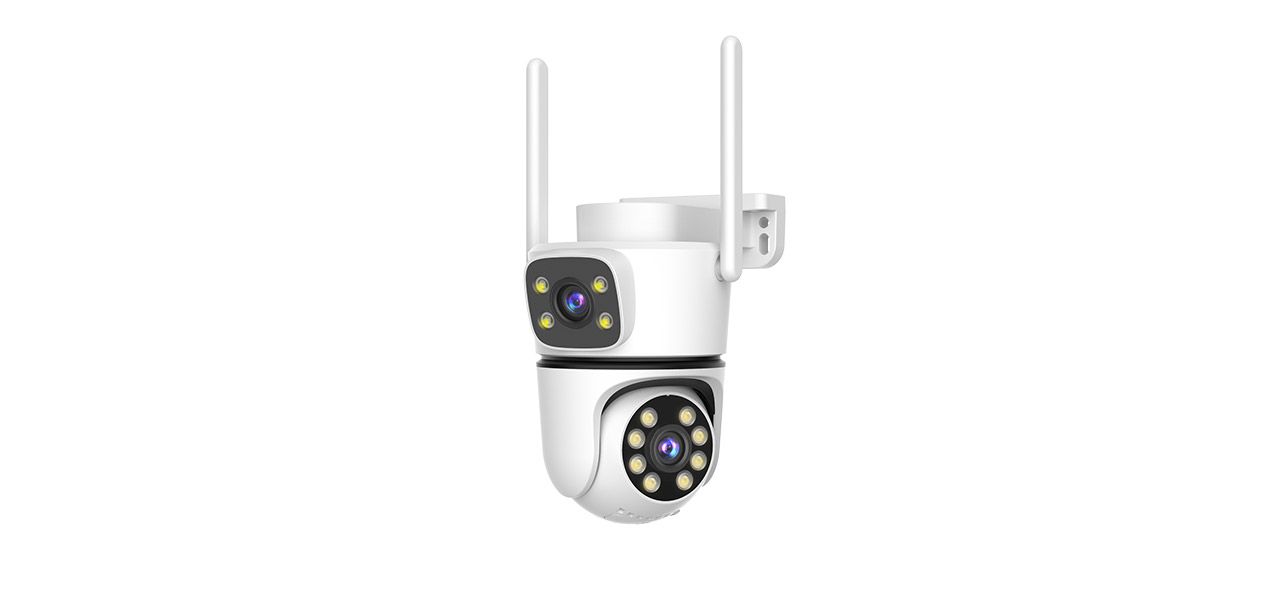

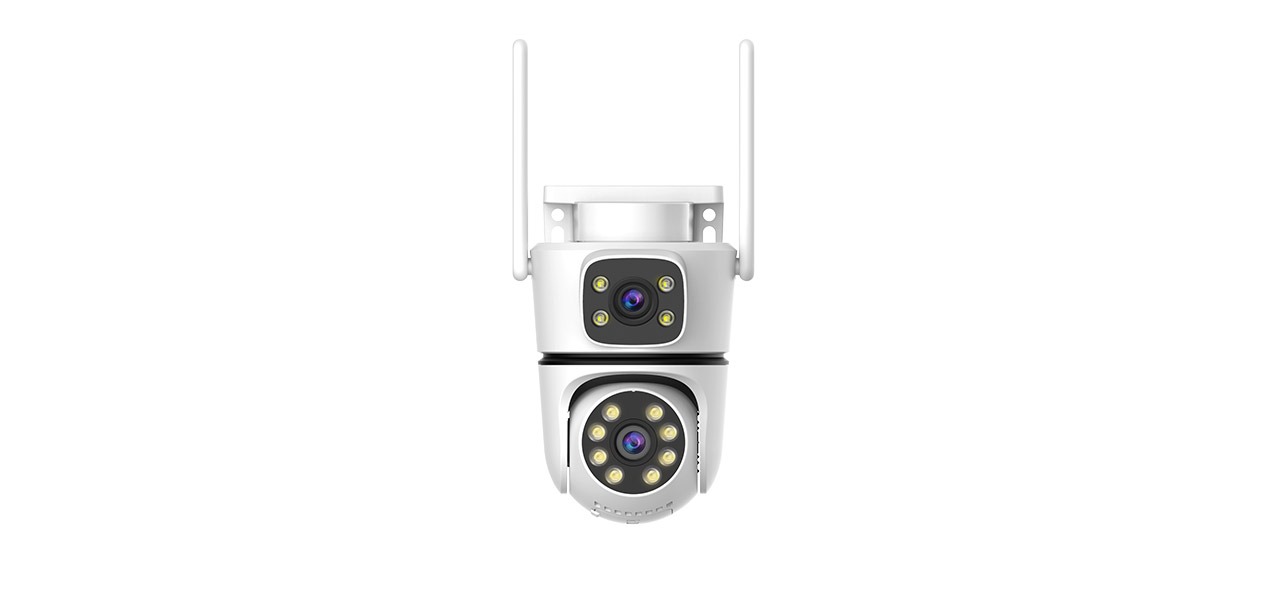

| Model NO. | DQ1 |
| Camera | |
| Sensor Type | 1/3.2" CMOS |
| Shutter | Adaptive Shutter |
| Lens | 3.6mm@F2.4*2Pcs, Diagonal Field of View: 80°, Horizontal: 69°, Vertical: 37° |
| Pan/Tilt Rotation Angles | Horizontal 0°-350°, Vertical 0°-90° |
| Lens Interface Type | M12 |
| Day/Night Mode | ICR Infrared Filter |
| Digital Noise Reduction | 3D Digital Noise Reduction |
| Wide Dynamic Range | / |
| Interfaces/Buttons | |
| Storage Interface | Micro SD Card (up to 128GB) |
| Power Interface | DC Jack, 5.5×2.1mm |
| Reset Button | 1 |
| Call Button | / |
| Compression Standards | |
| Video Compression Standards | H.265/H.264 |
| Video Bitrate | Adaptive Bitrate |
| Audio Bitrate | Adaptive Bitrate |
| Image | |
| Maximum Image Size | Single Camera up to 1280x720, supports dual stream |
| Frame Rate | 15fps |
| Image Flip | Support |
| Backlight Compensation | Support |
| Software Features | |
| Smart Alarm | Motion/Person Detection |
| Two-Way Audio | Support |
| Voice Call | / |
| Auto Tracking | Support |
| Gun-ball Linkage | Support |
| Pan/Tilt Presets | Support, up to 6 presets |
| Wireless Parameters | |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 2.4G supports 20MHz |
| Security | WPA/WPA2/WPA3，WPA-PSK/WPA2-PSK |
| General Specifications | |
| Operating Temperature and Humidity | -10℃~45℃, Humidity less than 95% (non-condensing) |
| Protection Level | / |
| Power Supply | DC 12V/1.25A |
| Infrared Illumination Distance | 10 meters (varies with environment) |
| Dimensions (mm) | 160×130×175mm |
| Weight | 345g (bare unit) |
