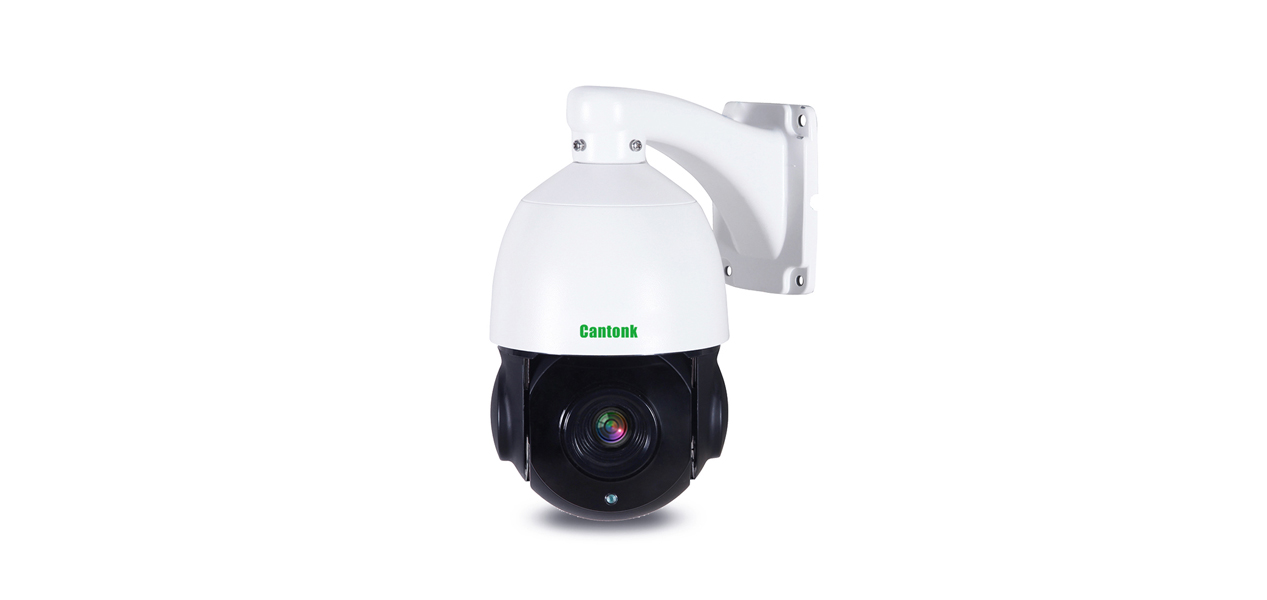

| Model | PT4AH18XIGC200 |
| Camera | |
| Image Sensor | 1/2.9" SONY Low Illumination CMOS Sensor |
| Horizontal Resolution | 2MP |
| Compression | H.264/H.265 |
| S/N Ratio | 60db |
| PTZ | |
| Horizontal Rotation Speed | 120°/S |
| Horizontal Rotation Range | 0°~360° |
| Tilt Rotation Speed | 30°/S |
| Tilt Rotation Range | 0°~93° |
| Preset Points | 255 |
| Guard Tours | 8 groups |
| Guard Points | Max.20 points |
| Lens | |
| Focus Length | 5.35-96.3mm F1.8-F3.9 |
| Focus Control | 18X Optical Zoom |
| Night Vision | |
| Infrared LED | ￠35 x 6PCS |
| IR Range | 80m |
| Day-night mode | AUTO |
| Network | |
| Network protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support |
| Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA |
| Main Stream1 | 1920*1080@30fps |
| Main Stream2 | 1280*720@30fps |
| Main Stream3 | / |
| Sub Stream1 | 720*480@30fps |
| Sub Stream2 | 352*288@30fps |
| AI Function | |
| Smart Analytic | 3D Human Tracking、 Intrusion Detection、Alarm Detection |
| Tracking effective range | 5~45M Speed: 3~12KM/h |
| Interface | |
| Audio | 2-Way Audio |
| Alarm | / |
| SD Card Slot | Optional |
| POE | Optional |
| General | |
| Weatherproof | IP66 |
| Operating Temperature | -40℃～+70℃ |
| Operating Humidity | ≤90% Non Condensing |
| Power | DC12V/3A |
| Lightning Protection | Transient voltage 6000V |
| Dimension | 18.5x 18.5 x 28.8 (cm) |
| Weight | 1.56Kgs |
