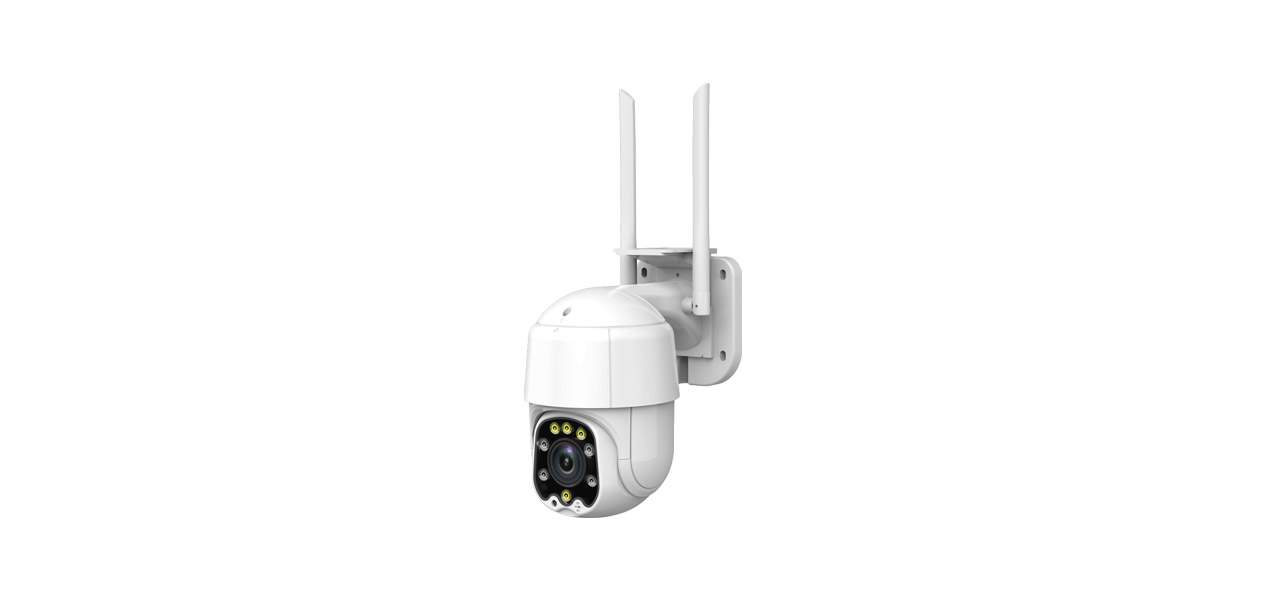

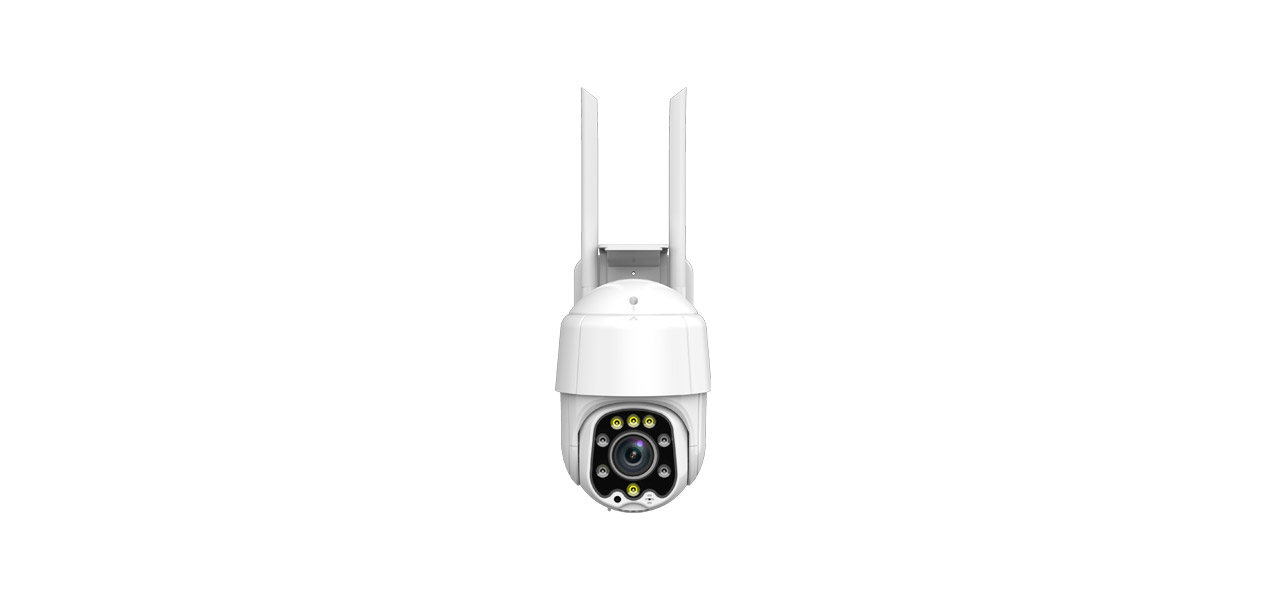

Model NO.AC94
◆ Online firmware upgrade, synchronous update function and experience
◆ intelligent push, filter out useless information
◆ Support Android, IOS intelligent terminal remote real-time monitoring
◆ Support alarm input and output control functions, can control strobe lights in linkage, and can also be used for linkage control of alarm equipment
◆ 2.0mp HD Pixel (1920X1080), clear picture quality
◆  Support preset point setting and recall function, support up to 6 preset points, support preset point cruise function
◆ Support accurate humanoid tracking, and can set the guard position. After the target tracking is completed, it can automatically return to the guard position and wait for the next tracking.
◆ Wired and wireless automatic switching, in the environment of poor wireless signal, you can directly use the wired connection device and router, automatically switch to wired mode
◆ Support TF card recording and cloud recording, TF card supports up to 128G
◆ Support cloud service, free 3-day cloud service experience package
◆  Support two-way voice call function, module onboard power amplifier IC, can effectively eliminate echo, suppress noise, prevent distortion and other phenomena
◆ Support device sharing function (support sharing multiple friends) and device management identity transfer function
◆Infrared night vision lighting (night vision distance 15 meters), 24-hour monitoring day and night, IR-CUT switching, no color cast during the day, and clearer night vision
Main  Processor
Image Sensor
Sensor1/3" color CMOS sensor
LensM12, f: 4mm, F2.3, 3-megapixel
Visual angleH (horizontal) 67 degrees; V (vertical) 50 degrees; D (diagonal) 88 degrees
Minimum illumination0.01Lux
Input/OutputTwo-way voice intercom available (built-in Microphone and speaker)
Audio compression methodAAC
Video compression methodH.264/H.265
Lighting frequency50Hz, 60Hz
Image frame rate15fps
Maximum Image Resolution1920*1080P
Light Source for Night VisionIRCUT double filter automatic switching, 6 infrared lamps (850nm wavelength), irradiation distance:5 meters
Wireless Network2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols SupportedTCP/IP, UDP/IP, DHCP, RTMP, MUTP
IP Address SupportedDynamic IP address supported
Intelligent functionIntelligent push, Humanoid detection, vehicle detection, package detection, pet capture, activity zone
Alarm detectionMotion Detection
Alarm linkageMotion detection alarm, humanoid detection alarm, sound and light alarm, alarm video, snapshot
Alarm notificationAlarm push by mobile APP
PTZ rotation angleH (horizontal) 0° ~ 355°; V (vertical) -20° ~ 90°
Power Supply1 Micro USB interface, DC 5V/1A
SD card1 Micro SD card (up to 128GB)
Keys1 function key
Adjustable lensNot adjustable
LED indicationMonochrome white light (power/network signal/function indicator)
Video storage methodMicro SD card (up to 128GB) local storage, cloud storage

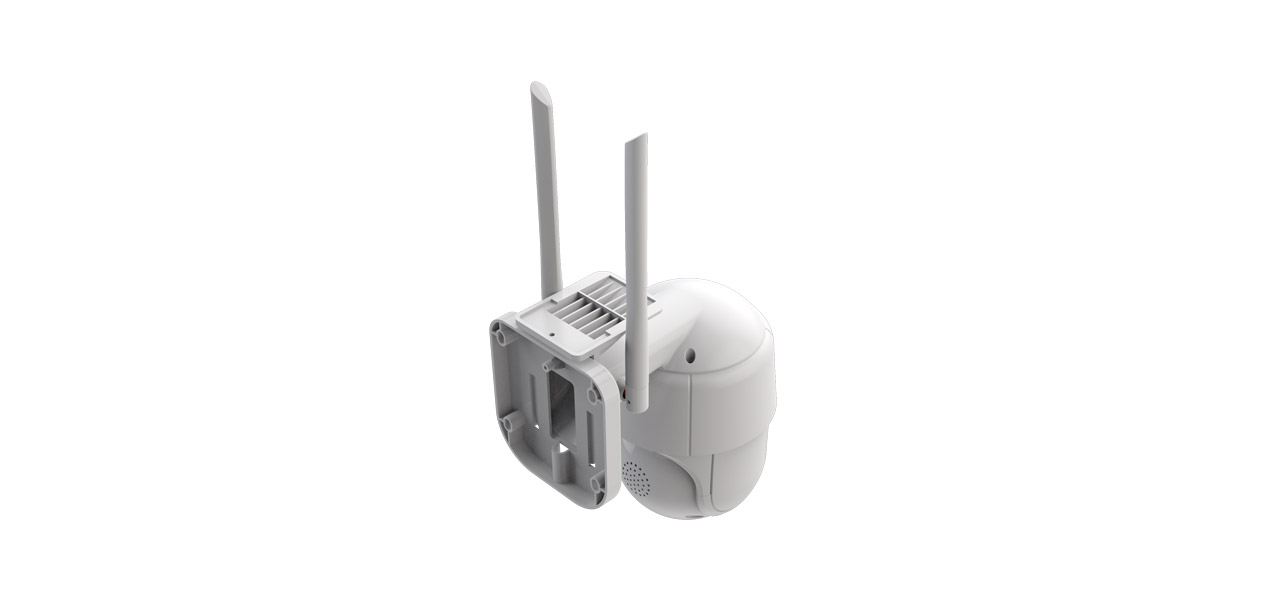

Install methodCeiling or wall hanging
Dustproof and waterproofno
Operating environment-10° ~ 45°C /10% ~ 80% (no condensation)
Storage environment-20°C ~ 60° /0% ~ 90% (no condensation)
Appearance colorWhite
Dimensions (L*W*H)50*200*120mm
Net Weight of Bare Machine677.9g
CertificateCE, FCC, RoHS
