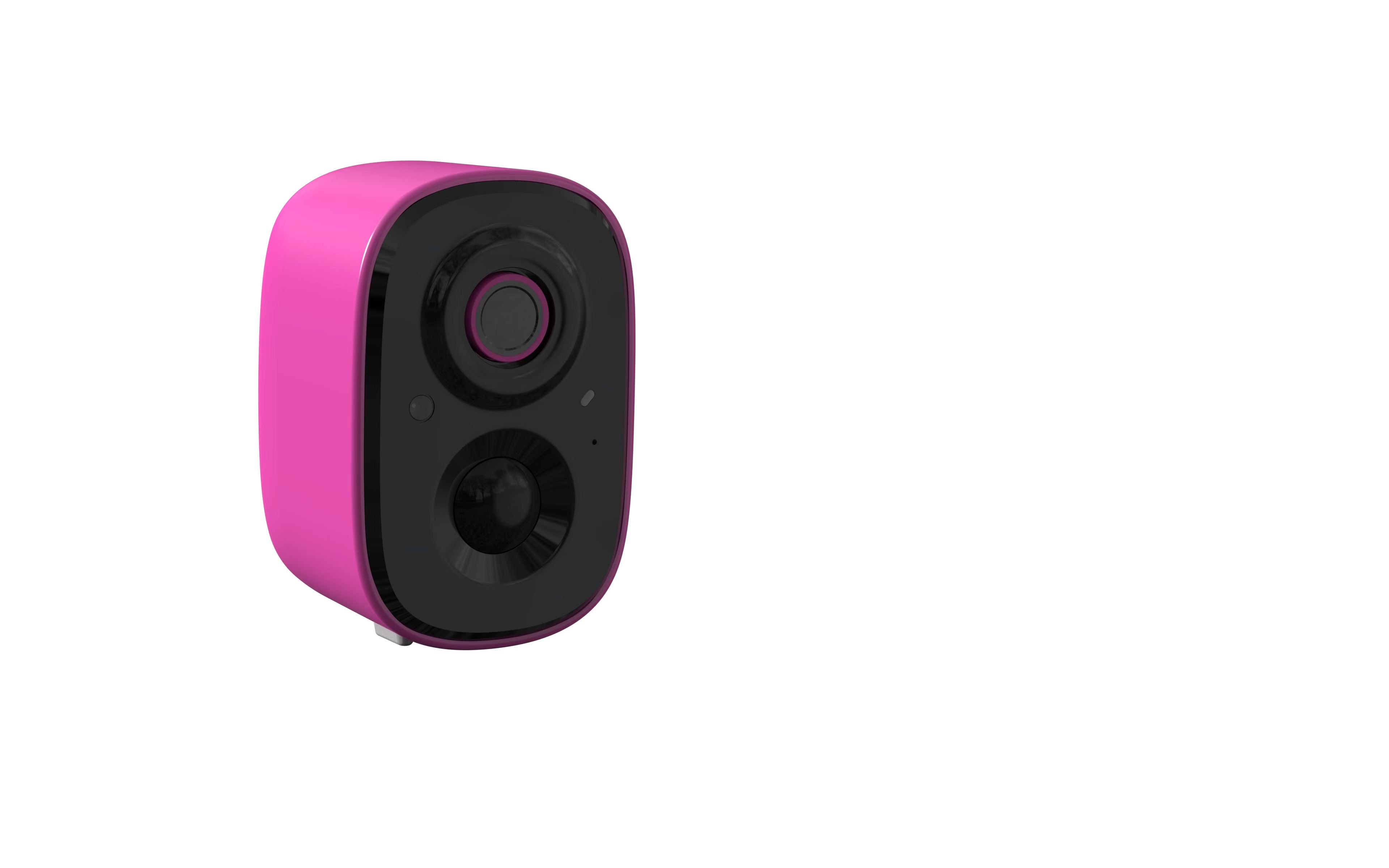

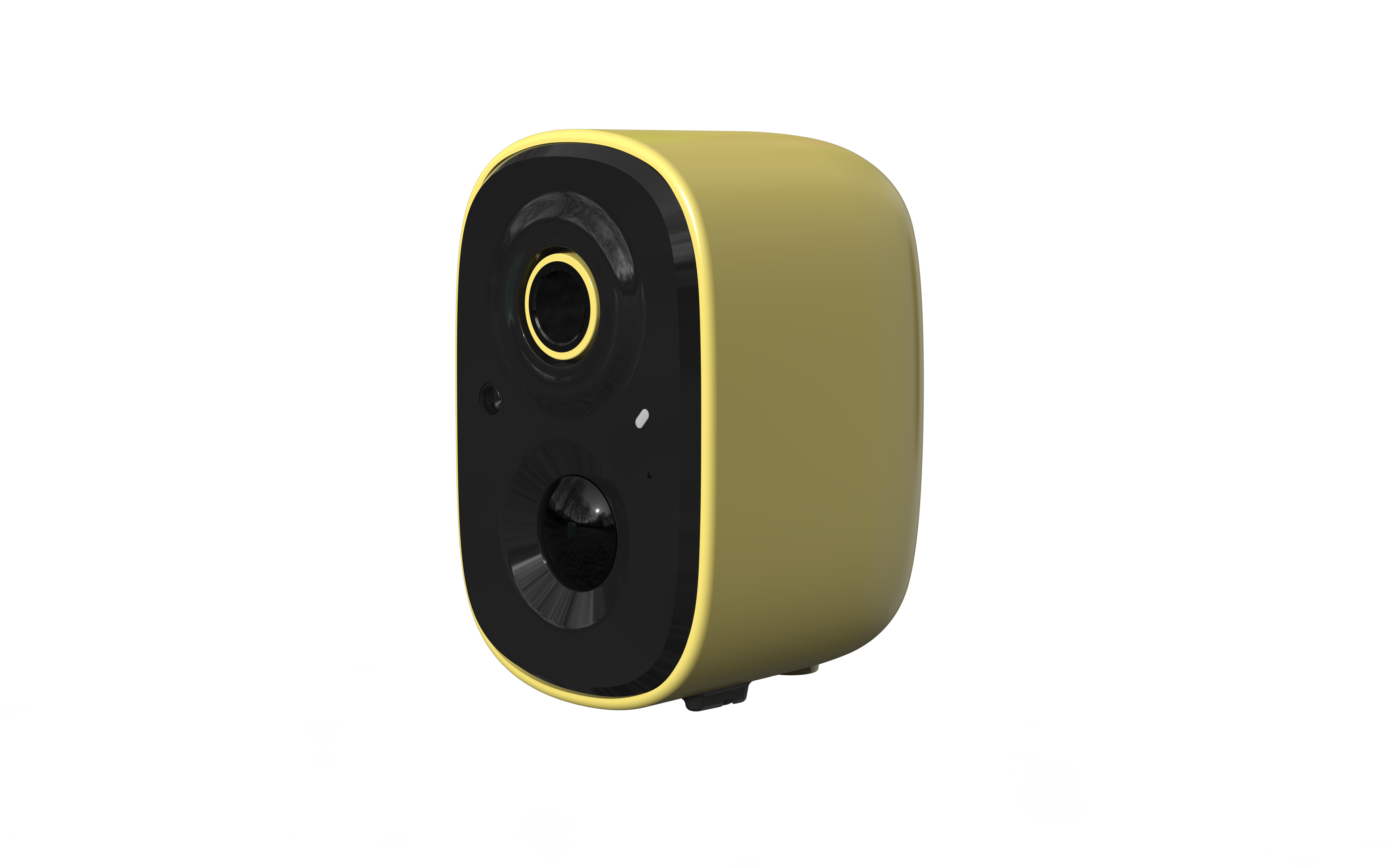

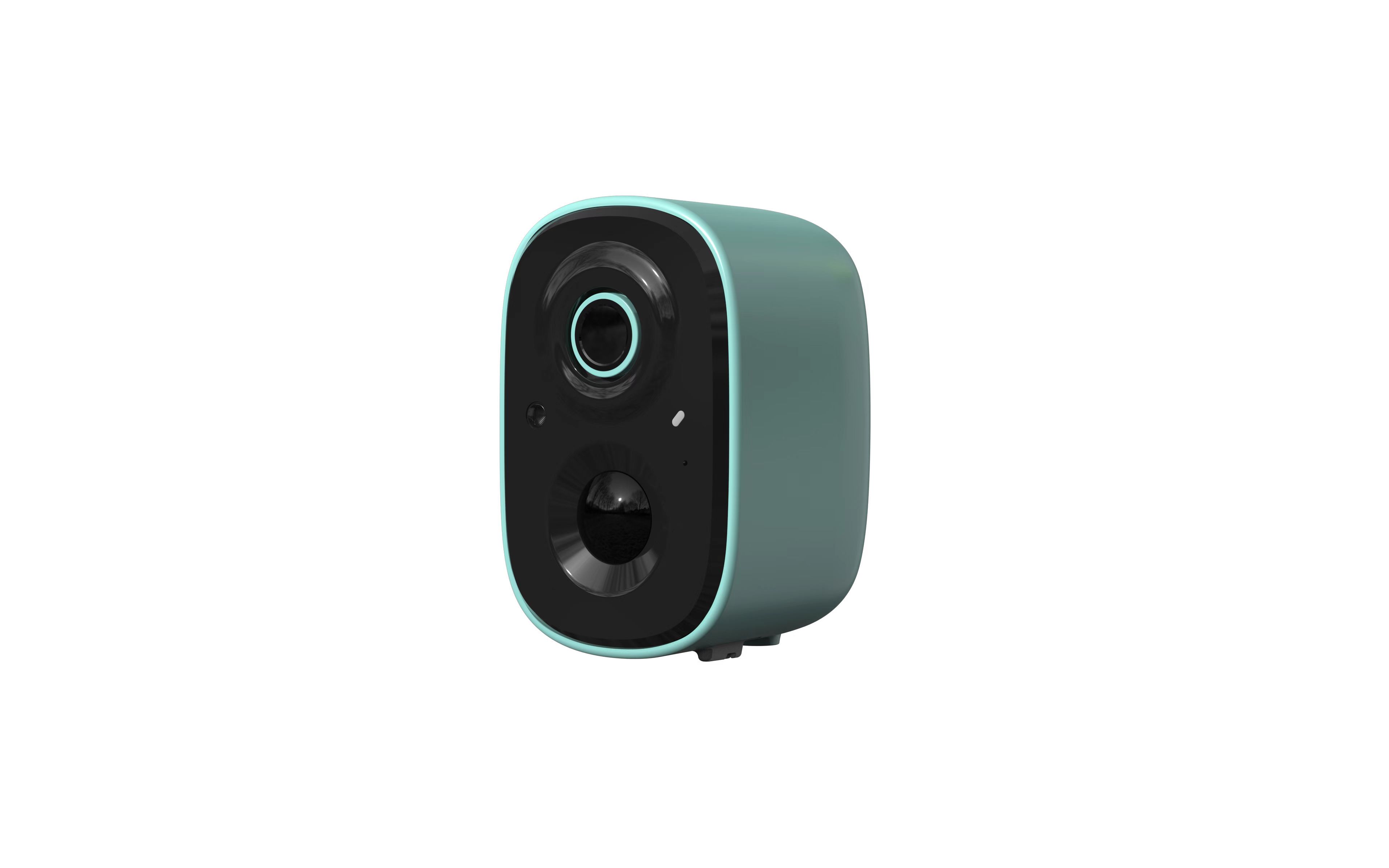

Model No  AC92
◆ The installation is simple and easy to use without any cable
◆ Clear and smooth images, intelligent transmission to play the limits of the network
◆ Online firmware upgrade, synchronous update function
◆ Support for two-way voice talk, echo elimination and noise reduciton
◆ Support Android, IOS smart terminal remote real-time monitoring
◆ 2MP(1920X1080),high definition image quality
◆ Infrared light(night vision distance of 7 meters), day and night 24-hour monitoring, IR-CUT switching, daytime color, night vision more clear
◆ Built in rechargeable lithium battery, long life, normal work up to 6 months, standby time up to 12 months
◆Support 2.4G Wi-Fi(IEEE802.11b/g/n)
◆  Smart storage algorithm, small space to accommodate more content, support Micro SD card(up to 128G), cloud storage
◆ Support to scan the QR Code to connect Camera
◆ Support humanoid detection, vehicle detection, pet capture and package detection (need to open value-added services)
◆IP65 dustproof and waterproof design, easy installation, back and bottom support 1 / 4 universal screw bracket
 Sensor1/2.9"color CMOS sensor
 LensM12,f: 3.3mm,F2.0, 2MP
 View angleH(horizontal)95degree; V(vertical)55degree; D(verse)110 degree
 Low illumation0.01Lux
 Input/outputTwo-way voice talk (built-in microphone and speaker)
 Audio compressionAAC
 Vedio compressionH.264/H.265
 Light frequency50Hz, 60Hz
 Frame rate15fps
 Maximum image 1920*1080P
 Night visionChoose 8 low power infrared lamps or 2 medium power infrared lamps (850nm wavelength)    Optional white light fill
 Wireless network2.4G WIFI(IEEE802.11b/g/n),built-in antenna
 Ip addressDynamic IP address
 Smart functionSupport humanoid detection, vehicle detection, pet capture and package detection
 Alarm notificationMobile APP alarm push,alarm sound warning and equipment white light flashing (optional)
 Wake up
 Wake up modePIR human body induction wake up, remote active wake up
 Record methodAlarm triggered, manual recording
 RecordCloud/Micro SD/Mobile storage
 LED indicationRGB three colors light, indicating power supply / network signal / function status
 DetachabilityNon detachable
 Usage time6 months (under the condition of recording 20 10s videos per day)
 Standby time12 months
 Charging voltageDV 5V+-5%/1.5A
 Charging time10 hours
 Protection modeIP65 dust proof and waterproof; over current / over discharge / overcharge / short circuit / high and low temperature charging protection
 standby power consumption1.68mW(4V 0.42mA)
 Daytime power consumption1W((3.8V 264mA)
 Night Power consumption  2.17W((3.8V 571mA)
 Power1个Micro USB port,compatible with type C interface
 SD card1个Micro SD card(Max support 128GB)
 Button1pcs reset button,1pcs switch button
Installation method
 Installation method1 / 4 universal screw hole and magnetic suction
 Dustproof and waterproofIP65
 Working environment-10° ~ 45°C  /10% ~ 80% (No condensation)
 Stored Environment-20°C ~ 60°  /0% ~ 90%(No condensation)
 Size(LxWxH)67mm*58mm*89mm(no stand)
 Net WeightAbout 212g
 Gross Weight  About 500g
 Material + TechnologyPC
 ColorWhite highlights
